Jackson Kraken Dragonfly install

I recently got a Jackson Kraken.  Here's how I added my Raymarine Dragonfly to the yak.

First step was to flip the boat over and place the Dragonfly transducer into the transducer scupper.  Then trace the footprint of the transducer in the scupper using a Sharpie...



The get out the kayak lazer gun (ok its actually just a hot glue gun) and let it get good and hot.  Apply a good bit of hot glue into the area where the transducer contacts the hull and quickly embed the transducer.  Then while the glue is still hot, add more glue above the transducer to "capture it" in hot glue...







Wait about five minutes and then flip her over.  Every kayak has a goofy feature.  This kayak has a well-intended but totally useless drink holder bungee.  Cut it out!



Seal the holes with your lazer...



Now drill a hole for the transducer cable...



Seal the hole with a Wire Cap...



Put a little Goop into the backside of the wire cap to seal and minor openings...



Put a small bead of hot glue onto the transducer cable and press it into the recess around the hatch perimeter to secure the cable high and out of the way for tangle free rod stuffing...







Repeat every few inches until its all high and tight...





After looking at a number of ways to get the cable thru the hull and to the head unit I decided to use the hinge clamp plate as the "wire cap".  Carefully mark the front edge of the hinge clamp plate and then disassemble the clamp.

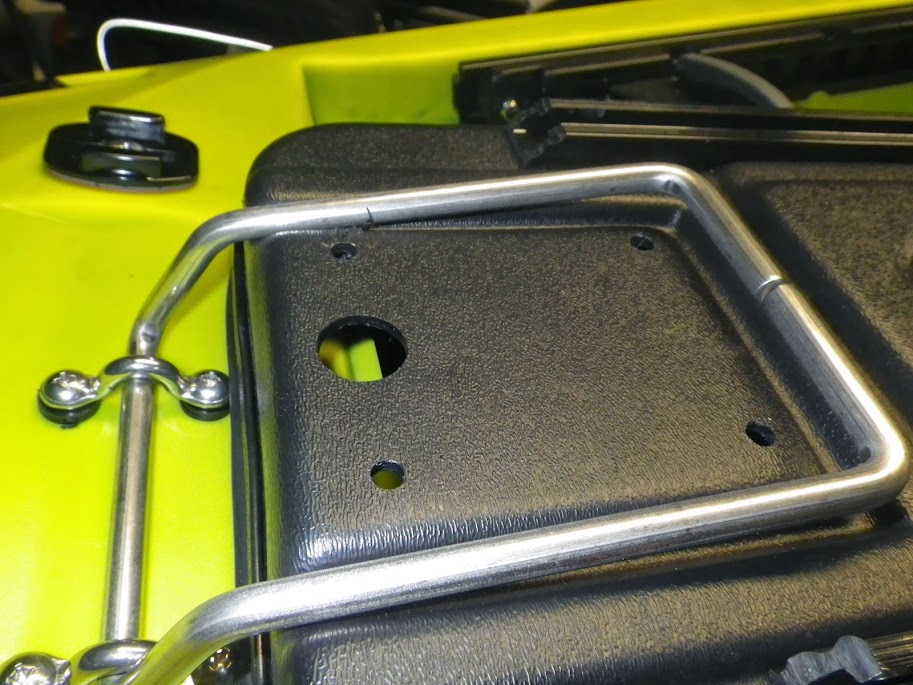

Then drill a hole for the transducer cable.  Place the hole so that only a small portion of the hole is exposed when the clamp plate is reinstalled.  This small gap is where the wires will pass thru while the clamp plate will cover the majority of the large hole required to pass the cable end thru...



Pass the wire thru and Goop all of the clamp holes...



Reinstall the clamp and then open the hatch.  Seal the backside of the pass thru with more Goop.  Then install a pair of cable organizers to the bottom of the hatch under the clamp plate...



Coil your transducer cable and zip tie it into place using your cable organizers...



Route the power cable that is integrated into the transducer cable forward into the battery tray that is under the front hatch.  Trim to length and install terminal ends...



Install battery...



Done with the hard part (which was actually really easy).
